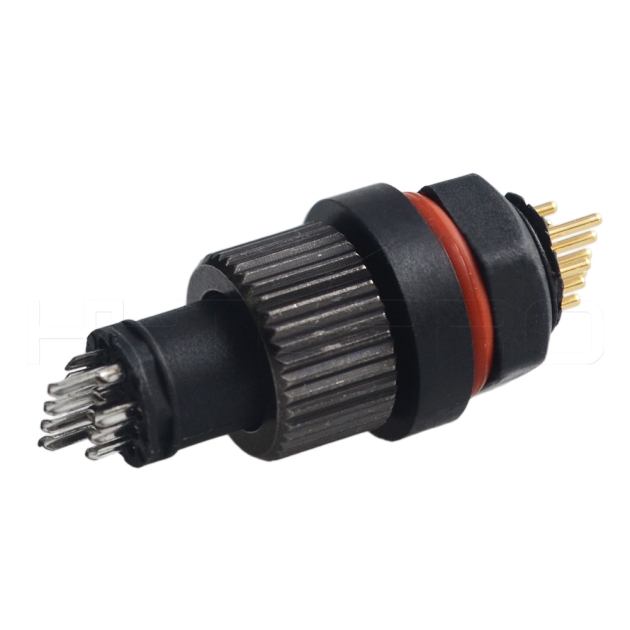

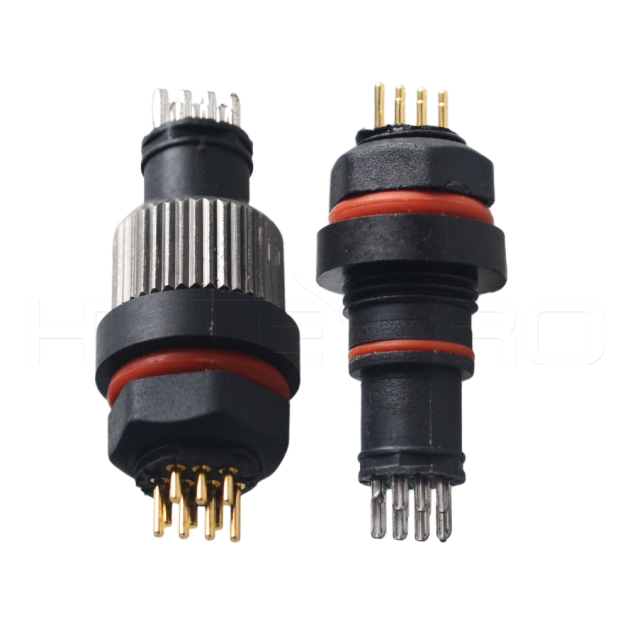

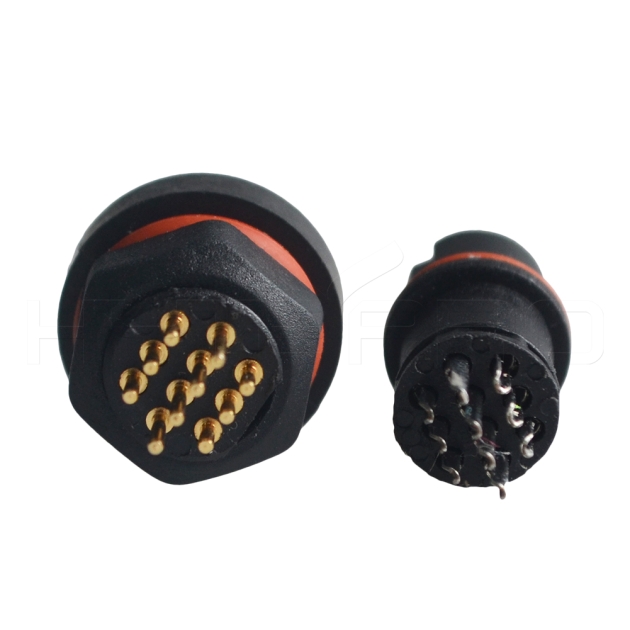

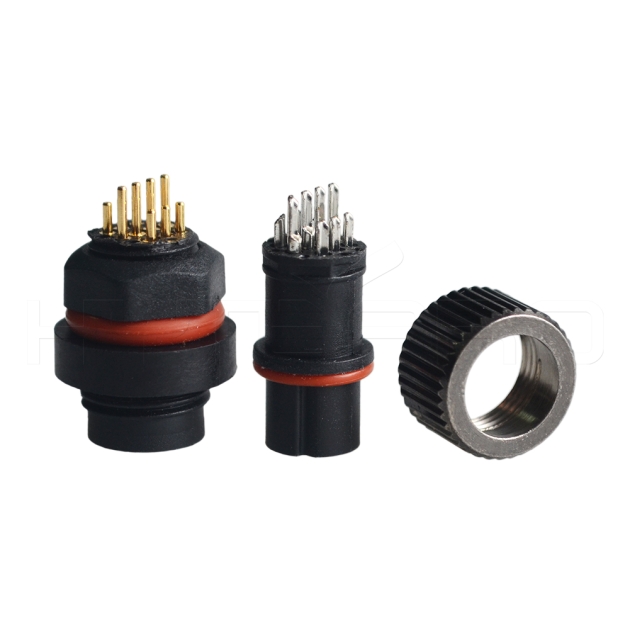

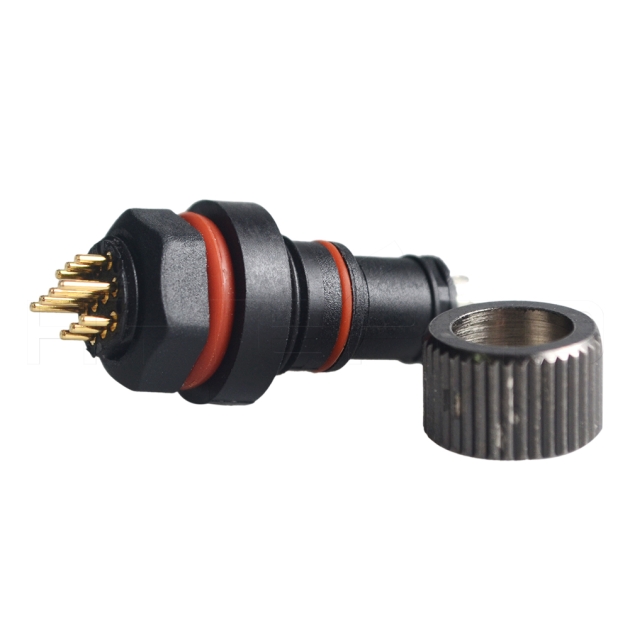

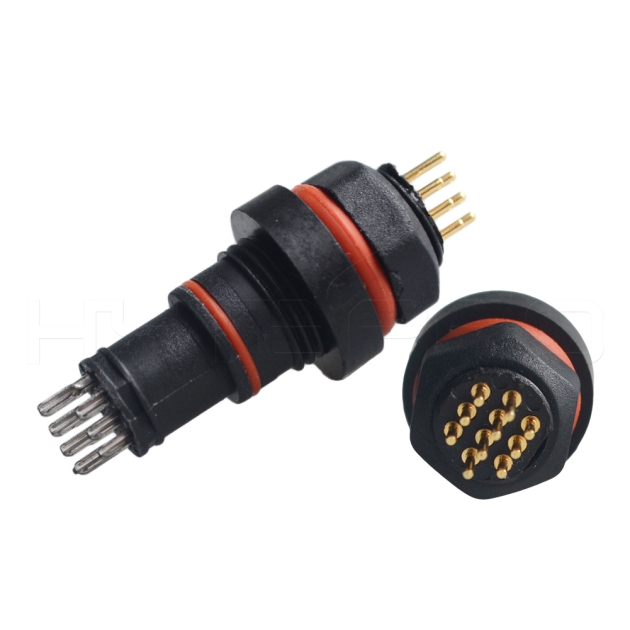

Product Name: 10PIN board wire power waterproof connector DC-010
Part Number: HTP-DC-010
10PIN board wire power waterproof connector DC-010
2019-09-16 15:25:09 1175Product Name： 10PIN board wire power waterproof connector DC-010Part Number：HTP-DC-010
- Trademark : HYTEPRO®
- Part Number : HTP-DC-010
- Number of Pins : 10
- Waterproof Rate : IP67~IP68(IEC-60529)
- Operating temperature : -40~+105℃
- Contactor : Copper with Gold plated
- Contact Impedance : 30MΩ max.
- Housing : Nylon
- Insulation Resistance : 2000MΩ/Min
- Assembly Method : Screwfix,Welding,Overmolding
- Rated Current : Small pin 2A, large pin 40A
- Type : Male for Board,Feamle for Wire
- RoHS : Compliant
- Customizable : Yes
