2021-10-15 17:42:32   4261

Anti-reverse plug design, Male part with usb cable, Annular magnetic adapter is lightness but power, Magnetic connector is for data sync and power charging

  • Trademark : HYTEPRO®
  • Part Number : HTP-CA-M553
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 5
  • Magnet Material : NdFeB
  • Magnetic Force : ≥ 500gf
  • Length : 1.0 Meter
  • Jacket : TPE
  • Interface : USB A Male
  • Color : White
  • Cable Type : Round
  • Conductor : Tinned Copper
  • Wire Gauge : 28AWG
  • Function : Charging and data transfer
  • Insert Material : PA66+30% GF
  • Voltage Rating : 5~24 VDC
  • Current Rating : 2 Amps
  • Fastening Type : Magnetic
  • Operating Temperature : -40°C ~ 85°C
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Poly bag,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes

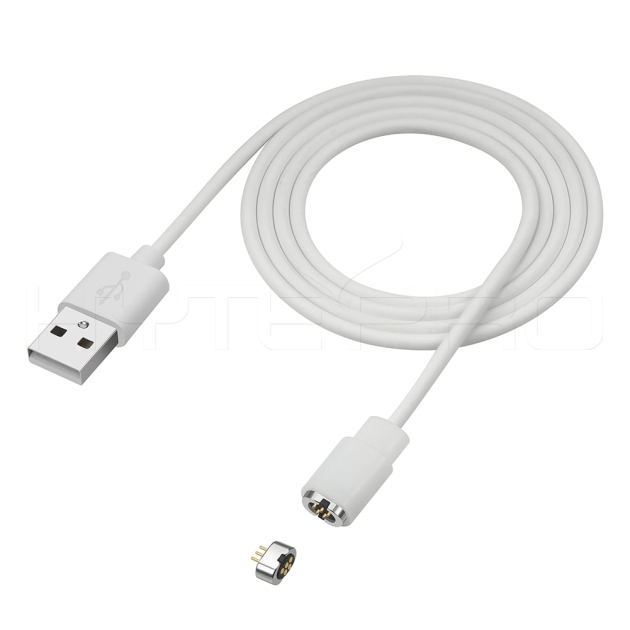

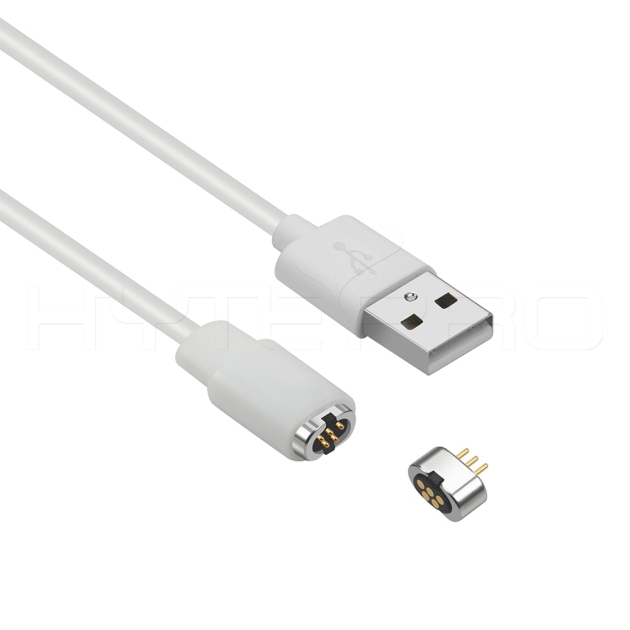

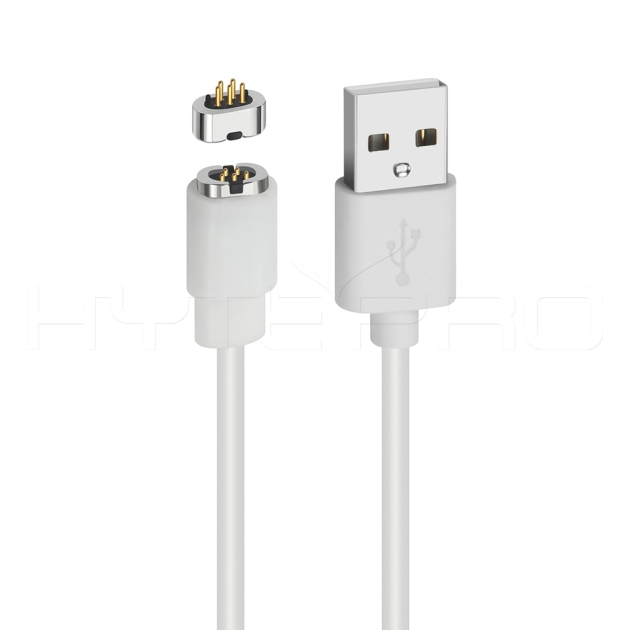

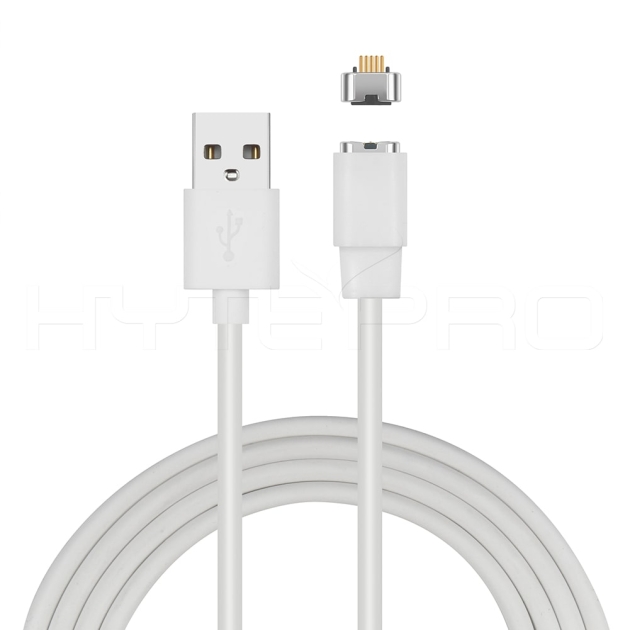

Product Name:Pogo 5 pin magnetic charging cable male adapter M553

Product Name: Pogo 5 pin magnetic charging cable male adapter M553

Part Number: HTP-CA-M553

- Anti-reverse plug design, Male part with usb cable;

- Annular magnetic adapter is lightness but power,only weight 3.2g, but magnetic force is 550g;

- Magnetic connector is for data sync and power charging function;

- The contact pins is 5μ gold plated and magnets is Nickel-Plated;

- Pogo pin design and PA66+30%GF Plastic body structure, support 5V/2A;

- Can be used for PCBs of smart bracelet, smart watch and other electronic device;

- Hytepro has 12 years experience in custom make of magnetic connectors.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.

HytePro magnetic charging cable upgrade to TPE jacket and TPE over moulding, become more soft and comfortable, delicate touch, high elasticity, bring an amazing experience, greatly improve the feel and more durable.

Pogo 5 pin magnetic charging cable male adapter M553Pogo 5 pin magnetic charging cable male adapter M553Pogo 5 pin magnetic charging cable male adapter M553Pogo 5 pin magnetic charging cable male adapter M553Pogo 5 pin magnetic charging cable male adapter M553
