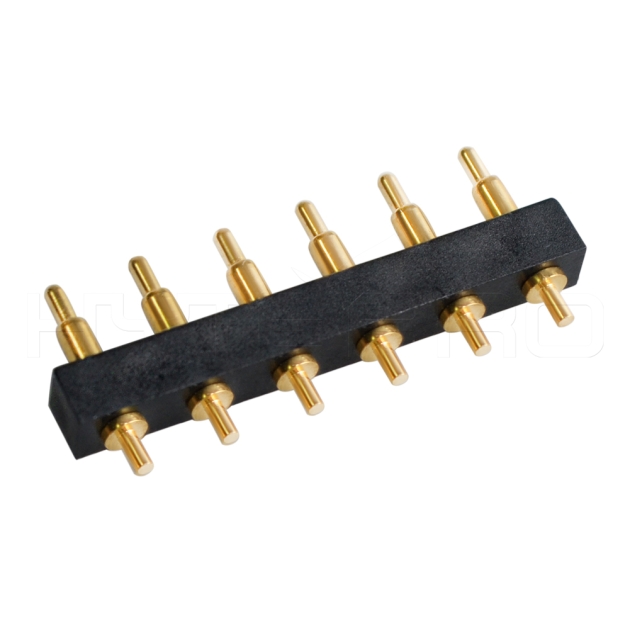

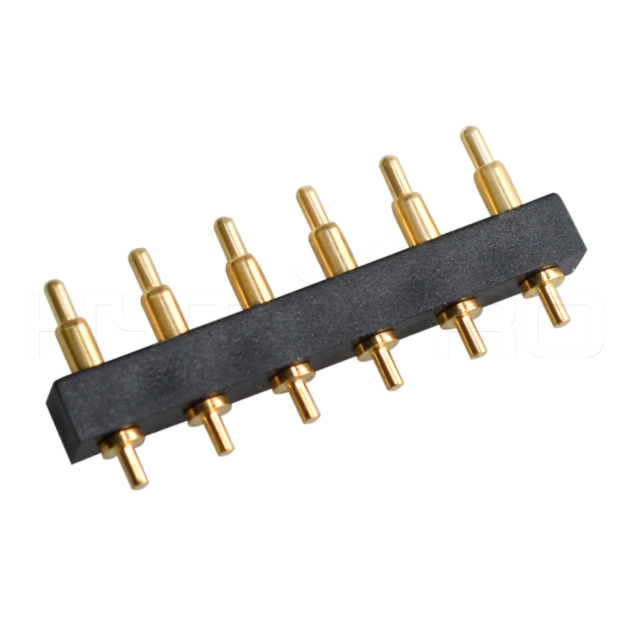

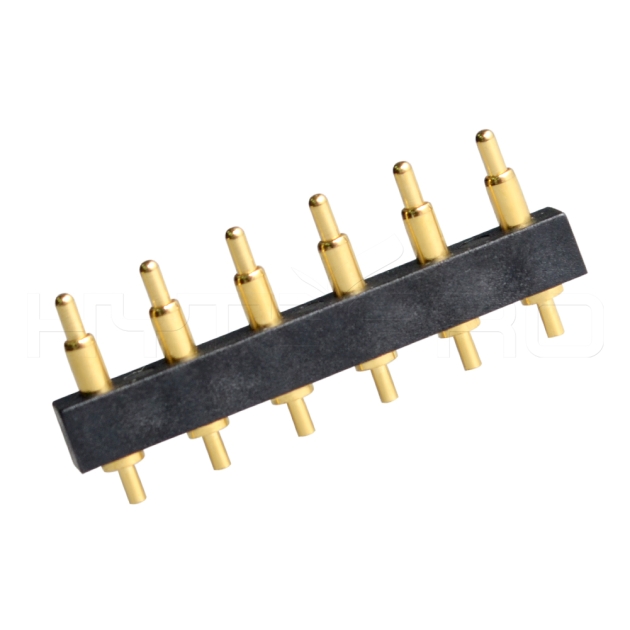

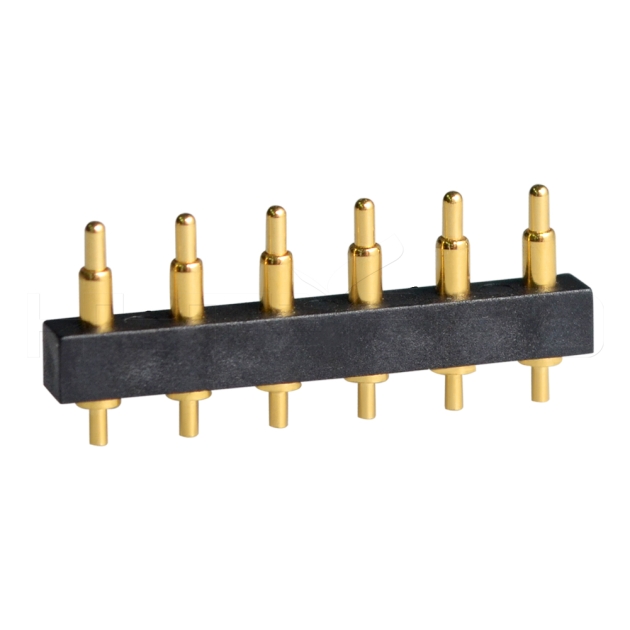

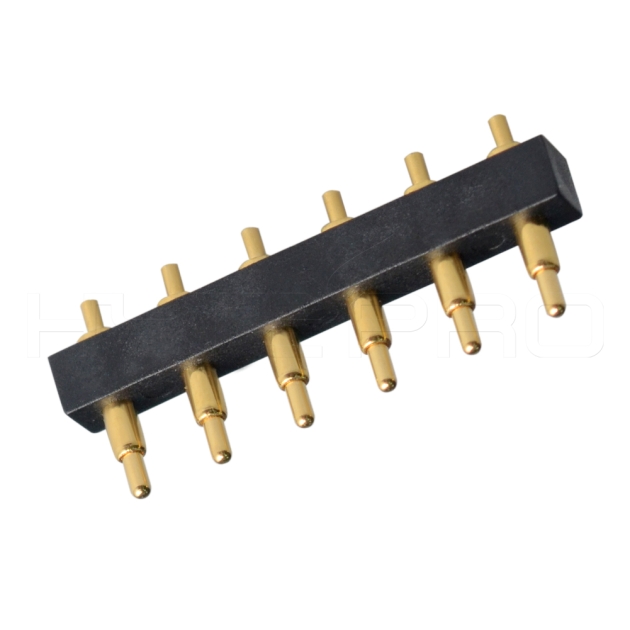

Product Name: Spring 6 pin pogo electrical connectors C746
Part Number: HTP-CON-C746
- Materials and plating:
The syringe is made of brass alloy C3604, nickel plated 80-120μ"" gold plated 3μ.
The needle is made of brass alloy C2700, nickel plated 80-120μ"" gold plated 3μ.
- Plastic is PA46, high temperature resistance
- The spring is stainless steel SUS304.
- Continuous working current: 1.0A - Working voltage: less than 12V@25°C
- Service life: less than 100000 times
- Durability: 10,000 spring forces are kept within range.
- Positive force: working point 80-100g
- Salt spray test 5% salt solution was rust-free for 72 hours.
- Solderability test 230±5°C±1Seconds wet solder coverage is over 95%.
- Widely used in Mobile, Communications, Chargers,Sports bracelet,GPS tracker,Smart watch,Beauty instrument,Medical device,Unmanned aerial vehicle and etc.
- HytePro supports OEM&ODM,we could custom make the pitch,pogo pin length and every details you want.
hytepro pogo pin connector, Wet weld coverage is above 95%;Pogo Pin or Spring Pin mainly used in Mobile, Communication, Charger, Medical Devices;
