Product Name: Customized pcb test checking fixture pins for PCB testing
Part Number: HTP-FTR-109
Customized pcb test checking fixture pins for PCB testing
- Test logic：
White dots of “test LED instructions” shows as LED working,it means testing OK, OK,otherwise,means not OK.
Besides,White dots of “test LED instructions” shows as the LED on pcb(red/green),it means testing OK, OK,otherwise,means not OK.
- Note:
- Connect testing device with DC 12V,please must connect positive and negative terminal correctly.
- There are three anti-paint on the tin point on the back of the board, so it may not be touched when placed in the test stand. You could press the handle several times until the Lamp 1 and 2 lamp light up;Or you can gently remove the three anti-paint on the back.
- The test must be pressed in the order from 1 to 6, otherwise the testing result will be incorrect;
- If you do not press in order accidentally , press 5, 6 in order to restore the logical sequence and then retest from 1.

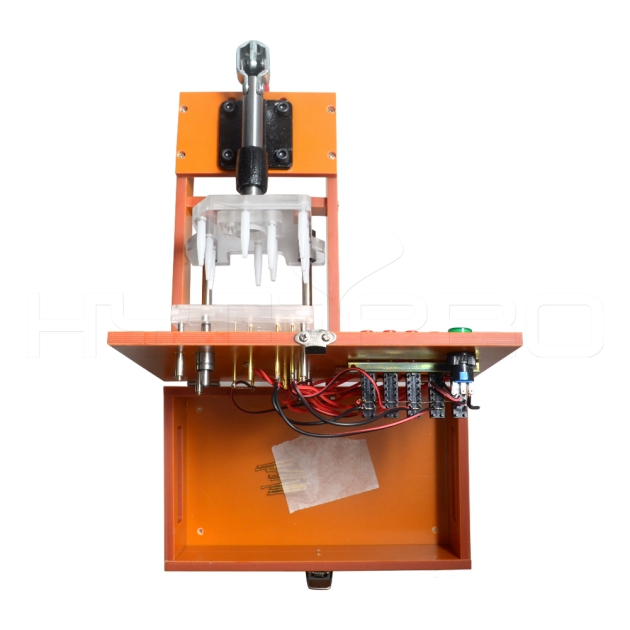

- There is some spare parts of pogo pin,when pogo pin of testing machine has been damaged,you could replaced.
Hytepro produces all kinds of pogo pcb circuit board test jig fixture,please contact us if you need custom suggestion.
hytepro pogo pin connector, Wet weld coverage is above 95%;Pogo Pin or Spring Pin mainly used in Mobile, Communication, Charger, Medical Devices;
