2022-12-06 18:19:32   2966

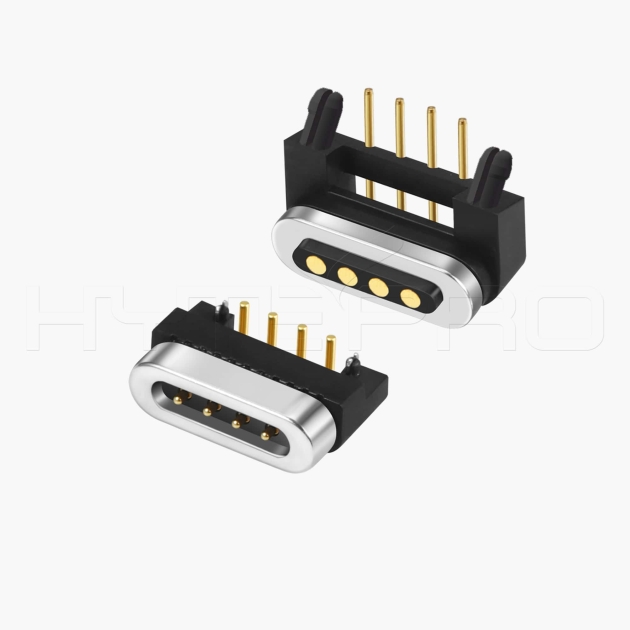

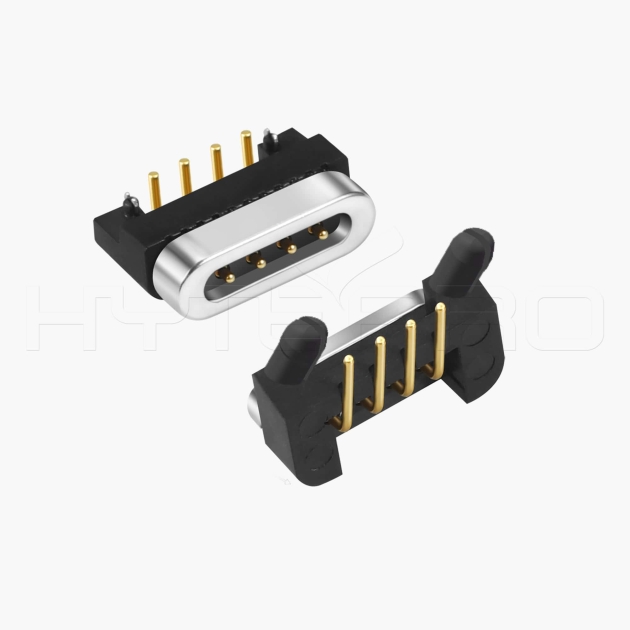

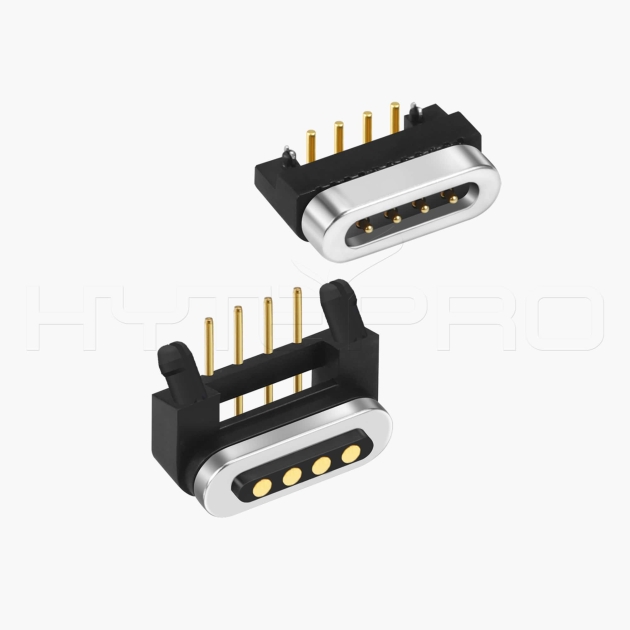

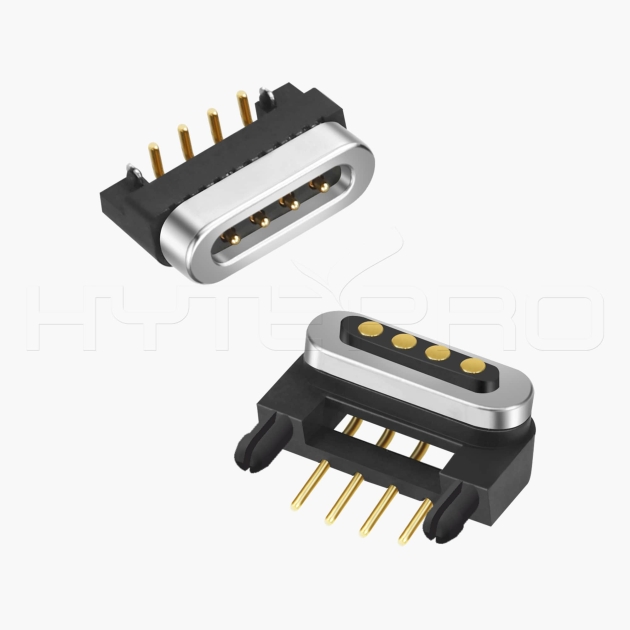

4 pin female part with new type 110° welding design, hytepro magnetic pogo pin connector with strong force 600g,anti misplugging, automatic connect

  • Trademark : HYTEPRO®
  • Part Number : HTP-CON-213C-M411P
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 4
  • Magnetic Force : ≥600gf
  • Voltage Rating : 5~24 VDC
  • Current Rating : 3A
  • Plastic Housing : PA66+30% GF
  • Magnet : NdFeB
  • Spring : Stainless steel SUS304/SWP
  • Needle : Brass C2700 / C3604
  • Insulation Resistance : 100MΩ at 100VDC
  • Gold Plated : 3~30μ
  • Operating Temperature : -40°C ~ 85°C
  • Contact Impedance : Dynamics≤30MΩ
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Tube,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes
Product Name:New style 4pin 110° degree magnetic connector 213C-M411P

Product Name: New style 4pin 110° degree magnetic connector 213C-M411P

Part Number: HTP-CON-213C-M411P

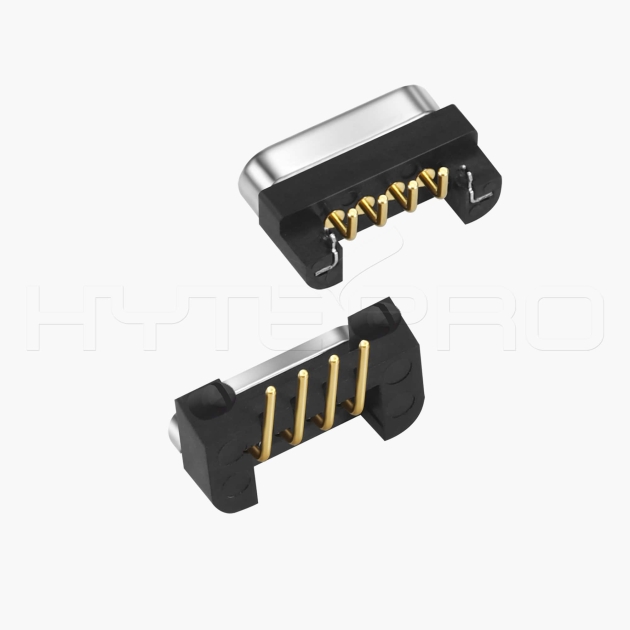

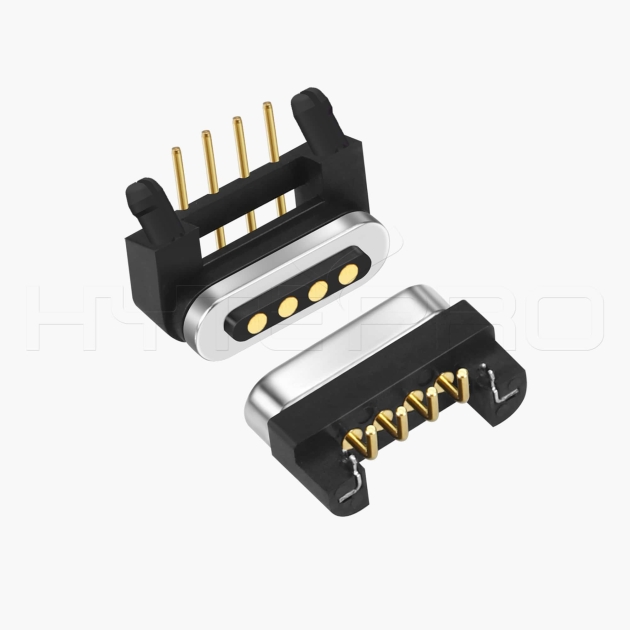

- Female part with new type 110° 4 pin welding design.

- 4Pin magnetic pogo pin connector with strong force 600g.

- The 4 pin magnetic charger is anti misplugging, automatic connect.

- The male part with a fixed column structure, can connect with USB data cable.

- Long service life, can be connected more than 10000 times.

- Hytepro has 12 years experience in custom make of magnetic connectors, can provide the competitive price.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.
